Documentation
*User's Manual: Includes product function description and configuration guidelines.
*Specifications: Essential electrical and physical parameters required for proper operation.
*Solid Model: 3D digital models used to represent the actual dimensions and structural features.
Introduction

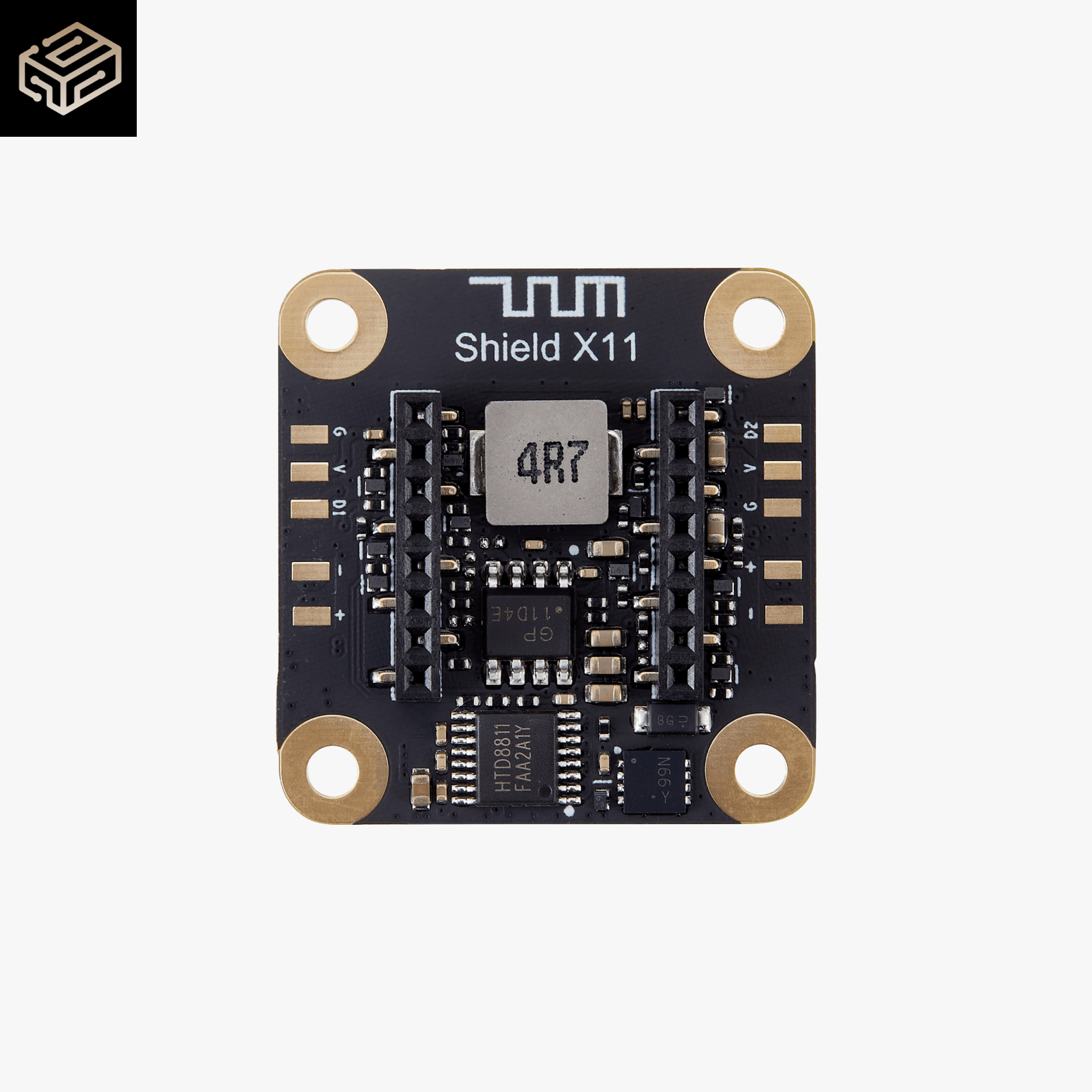

The Remote Control Receiver Shield can be combined with the Multi-Function Controller Core as the signal receiving end of various CyberBrick projects, integrating 2 DC Motor Ports, 4 DC Motor Ports, and 2 WS2812 RGB LED Ports, achieving coordination of powertrain, steering, and lighting systems without soldering.
Product Specifications
| Item Number | Component | Description |
| 1 | WS2812 Port | Connectable with WS2812 LED hub or WS2812 LED strip |
| 2 | DC Motor Port | Connectable with DC motor |
| 3 | Servo Port | Connectable with universal 5V servo motors |
| 4 | Power Input | XH2.54 2Pin DC power input |
| 5 | Power Indicator | White light means power on |
| 6 | Core Slot/td> | Connectable with multi-function controller core |
| 7 | Orientation Mark | Ensure proper installation alignmen |
|
Product ID
|
Model
|
Input Voltage | Current | Output Channel | Weight | Size |
|
XA004
|
Shield X11 | DC 7.4V – 12.6V | Standby current 60mA Working current 200~300mA Maximum current 3A |
4CH PWM 2CH MOTOR 2CH LED |
6g | 30*29mm |
Can be combined with the Official R/C Combo Kits
